S.S. Wire Mesh Cartridge
Unimarshal Technologies

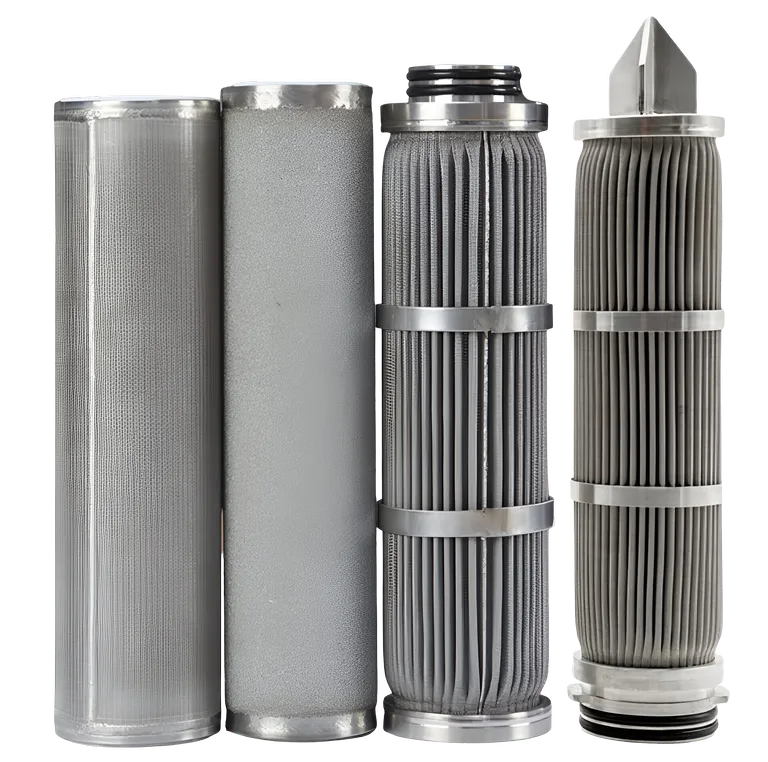

S.S. Wire Mesh Cartridge
Trusted Manufacturer, Supplier & Exporter of Stainless Steel Cartridge Filter Elements
Unimarshal Technologies Pvt. Ltd. is a leading manufacturer, supplier, and exporter of stainless steel (SS) cartridge filter elements, designed for high-temperature, high-pressure, and aggressive chemical applications. Our reusable and corrosion-resistant filter elements provide superior filtration efficiency, long service life, and cost savings, making them ideal for critical industrial filtration processes.
Technical Specifications
- 10 “ Length
- 20 “ Length
- 30 “ Length
- 40 “ Length
- Custom
Available MOC
- SS 304
- SS 304 L
- SS 316
- SS 316 L
- SS 410
- Duplex SS
Type
- Wire Mesh Type
- Sintered Metal Powder Type
- S.S Fiber Type
- S.S Multilayered Mesh
- Sintered Metal Fiber
- Pleated Type
- Welded Type
Advantages
- Strength and Durability
- Wide Range of filtration ratings
- Reusability and Simple Cleaning
- High Flow Rates
- Compatibility
Applications
- Chemical industry
- Medicine
- Petroleum
- Gas Filtration
- Scientific Research Units
Configuration
- Double Open Type (DOE Type)
- Code 7S/7F (226 Flat/ Bayonet)
- Code 3S/3F (222 Flat/Bayonet)
- 1” NPT / BSP Connection.
Standard O.D.
- 64 mm ( Customisation Available )
Standard I.D.
- 28 mm ( Customisation Available )
Filtration Rating
- 0.2 micron
- 0.5 micron
- 1 micron
- 3 micron
- 5 micron
- 10 micron
- 20 micron
- 25 micron
- 50 micron & More.
Product Code Abbreviation
UNI-MFC-S1-A20-50-M1
| UNI | Description | Style | Material | Size | Micron | Configuration |
|---|---|---|---|---|---|---|
| MFC - S.S Filter Cartridge | S1 - Wire Mesh | A - S.S 304 | 10" | 002(0.2 micron) | M1 - 226 O’Ring Bayonet | |
| S2 - Pleated | B - S.S 304 L | 20" | 005(0.5 micron) | M2 - 226 O’Ring Flat | ||
| S3 - Welded | C - S.S 316 | 30” | 1 | M3 -220 O’Ring Bayonet | ||
| S4 - Sintered | D - S.S 316 L | 40” | 3 | M4 - 220 O’Ring Flat | ||
| E - S.S 410 | 5 | M5 - 1" BSP/NPT | ||||
| F - Duplex S.S | 10 | |||||
| 20 | ||||||
| 25 | ||||||
| 50 | ||||||
| 100 |
